Flashing with Additional Thermal Insulation EHV-AT Thermo, EHN-AT Thermo

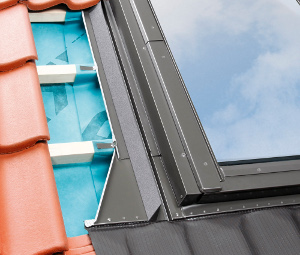

A new and universal flashing EHT-AT Thermo with additional insulation is an ideal solution which guarantees tight and ”warm” connection of the window with the roof covering. EHT-AT Thermo makes it possible to apply insulation of the window above the level of battens. To the inside of the flashing there is glued flexible insulating material which adheres tightly to the window frame constituting a thermo-insulated frame, which has excellent insulating benefits. Below the level of the batten the window is insulated by a wool insulating kit XDP. The Thermo flashing enhances U value of the window up to 15% depending on the window type, thus avoiding thermal bridging and heat loss. The EHV-AT Thermo is a universal flashing type and can be used with all types of roof coverings up to 90 mm profile depth and with all wooden as well as aluminium-clad plastic roof windows and is applied as standard. It is applied as standard to individual windows in the slope of the roof. The flashing may also be used as module flashing for windows used in horizontal and vertical combinations or block groups available for installation of windows at a depth V (0 cm), on roofs with pitches between 15° and 90°.

Flashing cross-section with thermo insulation material

Constituents of the Flashing

The EHV-AT Thermo is a universal flashing type, compatible with all types of roof coverings. The flashing is 22mm wider than standard and is made of four basic elements (bottom element, two sides elements and top element), each element is equipped with glued insulation material already made to size. The lower element has a long, wide aluminium plastic apron with an adhesive PVC fillet adhered to the underside. This allows the flashing to be adhered to the roof covering for a perfect fit. The flashing is equipped with side sealing channels to protect against wind blown dust, leaves, rain and snow. In the set there is a weep flap to allow condensation to drain away from the window.

Vertical and horizontal cross-section with EHV-AT Thermo elements

1 — top part of the flashings with insulation
2 — bottom part of the flashing with insulation and apron
3 — side parts with insulation ond sponge seals
4 — gutter
5 — aluminium strips to fix the flashing
6 — tile supporting profile

Vertical and horizontal cross-section with EHV-AT Thermo elements
